Network Cables

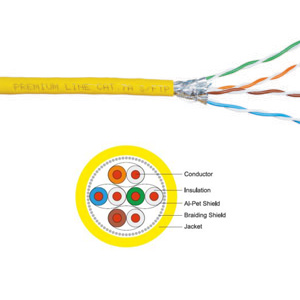

Cable Cat. 7A S/FTP

APPLICATION

10G BASE-T Ethernet
1000BASE-TX (Gigabit Ethernet)
1000BASE-T (Gigabit Ethernet)
100BASE-TX Fast Ethernet
10BASE-T Ethernet
Voice

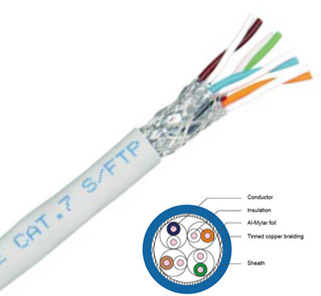

Cable Cat. 7 S/FTP APPLICATION

10G BASE-T Ethernet
1000BASE-TX (Gigabit Ethernet)
1000BASE-T (Gigabit Ethernet)
100BASE-TX Fast Ethernet
10BASE-T Ethernet
Voice

Cable Cat. 6A S/FTP APPLICATIONS

10G BASE-T Ethernet
1000BASE-TX (Gigabit Ethernet)
1000BASE-T (Gigabit Ethernet)
100BASE-TX Fast Ethernet
10BASE-T Ethernet
Voice

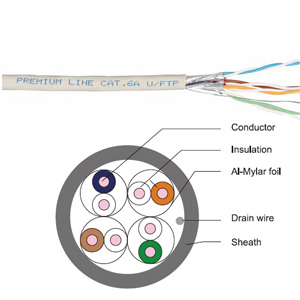

Cable Cat. 6A U/FTP

APPLICATION

10G BASE-T Ethernet
1000BASE-TX (Gigabit Ethernet)
1000BASE-T (Gigabit Ethernet)
100BASE-TX Fast Ethernet
10BASE-T Ethernet
Voice

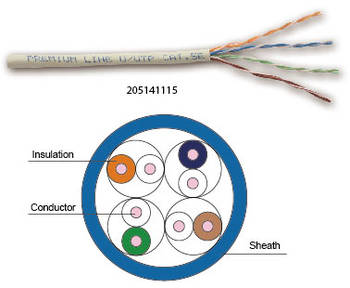

Cable Cat. 5e U/UTP APPLICATION

1000BASE-T Gigabit Ethernet
100BASE-TX Fast Ethernet
10BASE-T
Voice, ISDN

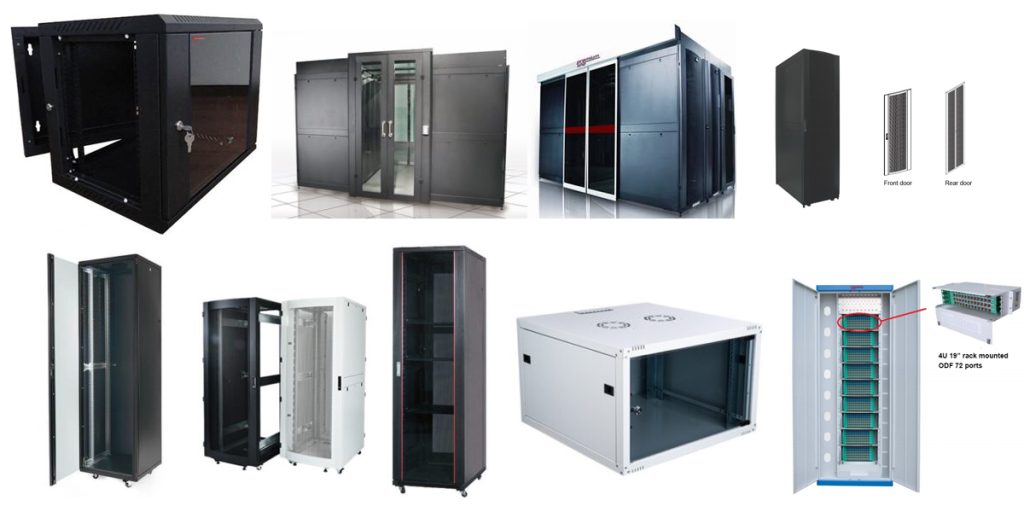

CABINET

Overview

As a core part of the entire cabling system, cabinet are widely used and also take an irreplaceable role in the equipment room. Nowadays cabinet not only has the simple function of storing devices but also can provide protection, electromagnetic interference shielding, and arrange equipment orderly to facilitate future maintenance.

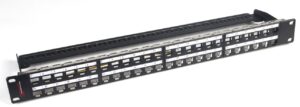

1U 48 Port Shielded Panel

Designed for Premium Line die-casting keystone jacks (P/N108524014,109824010,109924010)

Include removable cable management

Suitable for all 19” EIA racks


0.5U 24 Port Shielded Panel

Designed for Premium Line die-casting keystone jacks (P/N108524014,109924010,109824010)

Include removable cable management

Suitable for all 19” EIA racks

24 ports in 0.5U height, ideal for high-density distribution places

RoHS compliant

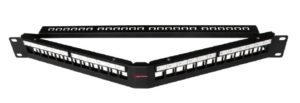

1U 24 Port Angled Shielded Patch Panel

Angled design saving space of frontal cable management bar

For passive racks, easy identification from standard design, benefits for important links wiring

Easy click on management bar, high strength affordable

Remarkable Labeling holder for management

Fitting with FTP/UTP 180D keystone jacks

Cat. 6A⁺ 180° Shielded KJ

APPLICATIONS

10GBASE-T Ethernet

1000BASE-TX Gigabit Ethernet

1000BASE-T Gigabit Ethernet

100BASE-TX Fast Ethernet

10BASE-T Ethernet

Voice, Video and other applications

Cat. 6A 180° Shielded KJ

Applications

10GBASE-T Ethernet

1000BASE-Tx Gigabit Ethernet

1000BASE-T Gigabit Ethernet

100BASE-Tx Fast Ethernet.

10BASE-T Ethernet.

Voice, Video and other applications.

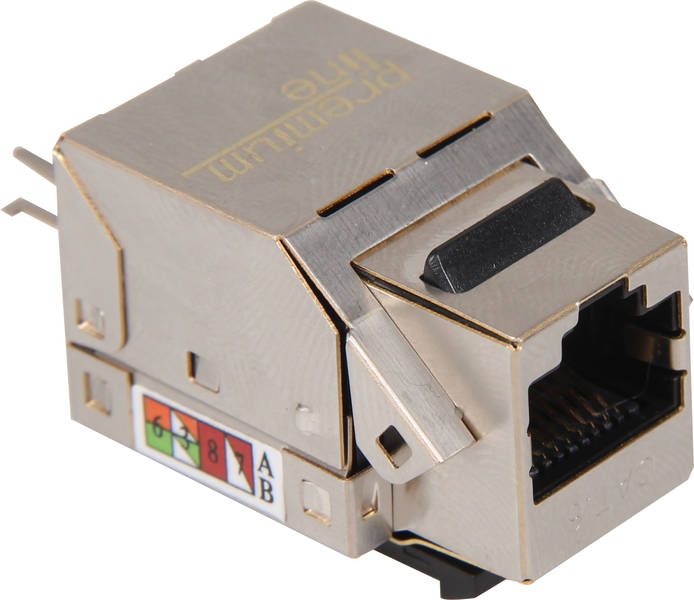

Cat. 6 90° Shielded KJ

Applications

1000BASE-TX Gigabit Ethernet

1000BASE-T Gigabit Ethernet

100BASE-TX Fast Ethernet.

10BASE-T Ethernet.

Voice, Video and other applications.

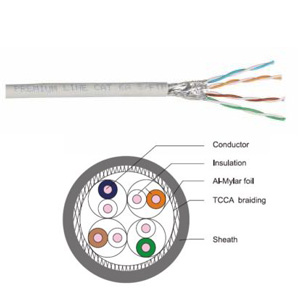

Cat. 6 S/FTP

Premium-Line Category 6 S/FTP system patch cord is factory verified products, dedicated for datacenter and high end project use.

To realize the high performance, the cable is coming with two shielding layers. Each pair is wrapped by individual Aluminum-Mylar film, to eliminate the near end pair to pair interferences.

fiber

Fiber Optic

Optical fiber is optical dielectric waveguides, through which it is connected to the world wide web. It is made of quartz fiber, being somewhat similar to glass. The signal is transmitted due to light emission.

Premium-Line Systems GmbH offers the wide range of fiber-optic cables and it has all the necessary competencies for the project implementation using this technology.

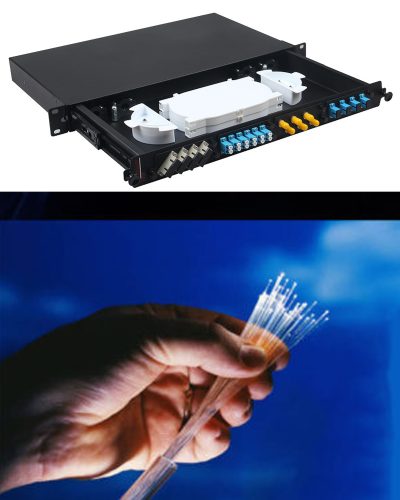

19” FO Patch Panel New

  • Unique modular design and full range of accessories allow to assemble a patch panel as needed
  • Four adapter slots can be covered by SC, ST, LC, FC-D-flange or blank adapter panels; Support up to 24 ports of SC simplex or LC duplex adaptors to provide up to 48 fibers terminations. The adapter panels are available for unloaded and fully loaded.

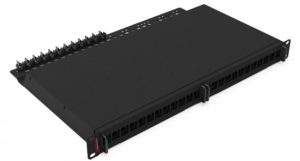

1U 24 Hybrid Panel /w cover

For 19” rack installation

Dimensions and mounting compliant with EIA-310D

24 ports include copper & fiber

2 interface plates are easy to be fixed in the clips locker

Interface plate for 180°RJ45 Keystone Jack, LC Duplex, SC Simplex, ST & FC Quick Port (All of the fiber optic adapter should be used with the fiber optic adapter support module: 127120000 or 127220000)

The plates are interchangeable

Fiber splice tray is up to 24 sleeves

RoHS compliant

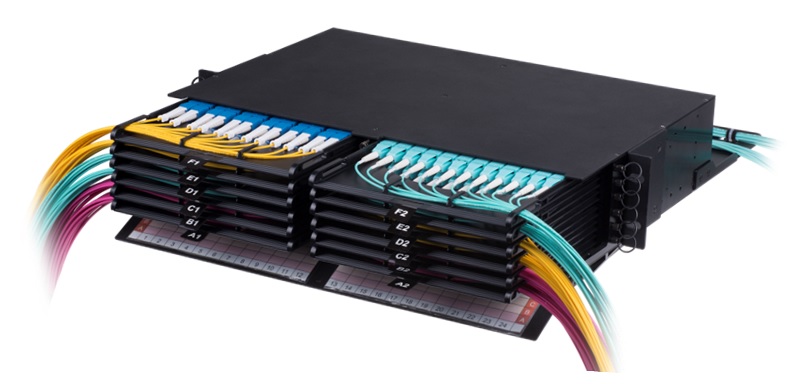

FO HD144 Patch Panel

Suitable for 1U/144F LC or 72F SC, 2U/288F LC or 144F SC, 4U/576F LC or 288F SC

Standard 19”Patch Panel

Suitable for MPO/MTP to LC/SC or MPO/MTP 12-port cassette (P/N 662uvwxy2  6630100y2 & 664xy0002)

Independent plug-in cassette

Environmental light weight Aluminum material

Front-end cable management

Stable adapter structure

Compatible with 8F&12F solution

Replaceable label and layer remark

MPO-LC fan out and LC/SC trunk cable

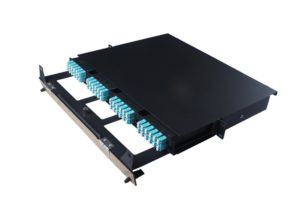

FO HD96 Patch Panel

Plug and play preterminated fiber solution , reduces installation cost and time

Fits all standard 19-inch racks 1U  48 ports

Suitable for MPO/MTP to LC/SC modules (P/N 2470xywz2)

Material/thickness of body and adapter panels: cold-rolled steel

TIA/EIA 568-B.3 standard

RoHS compliant

Constructed of base 1.2mm SPCC and cover 1.0mm SPCC

Metallic surface with liquid coating and color black(RAL9005)

Operating Temperature -20° to + 70°

Storage Temperature -40° to +80°

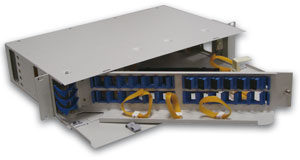

19” Rack Mounted ODF

Rack mounted design suits for standard 19” sever cabinet installation

Both side cable entrances, easy for arrangement

Adapter panel & back cable splicing and storage space in rotating design

Abundant cable management ring at storage space and front output place

Front panel latched adapter plate easy for replacement and management

Available for SC simplex, LC duplex, FC adapters, special ST adapters(P/N 231x41y00)

Metal frame material: SPCC /1.0 mm, side wing 1.5mm

Removable front door, easily sealing and reopen
